Water Pump For 6.2L and 6.5L detuned HMMWV (basic and A1 versions), 15633485 / 15633465
, 15633485 / 15633465 "Pin It")
Product Description

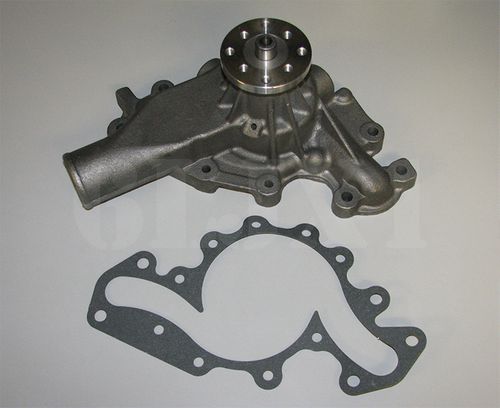

Water pump for all 6.2L and detuned 6.5L diesel engines used in the basic and A1 version military HMMWV. Also fits 92-93 6.2L Hummer H1 and CUCV M1008, M1009, etc.
Standard rotation pump design turns same direction as crank pulley. Do not use on engines with serpentine belt where the pump runs reverse of crank rotation.
Made in USA. P/N 15633465, alternate numbers 5740079, 23500133, 15633485. NSN 2930011937802. Includes gasket.
The 6.2L engine is identified by a decal which is adhered to the left rocker arm cover. The 6.5L engine is identified by a serial number bar code.
17 lb
Standard rotation pump design turns same direction as crank pulley. Do not use on engines with serpentine belt where the pump runs reverse of crank rotation.
Made in USA. P/N 15633465, alternate numbers 5740079, 23500133, 15633485. NSN 2930011937802. Includes gasket.
The 6.2L engine is identified by a decal which is adhered to the left rocker arm cover. The 6.5L engine is identified by a serial number bar code.
17 lb
