Slave Receptacle w/ Cap (2 Socket Style), MS75058-1
, MS75058-1 "Pin It")
Product Description

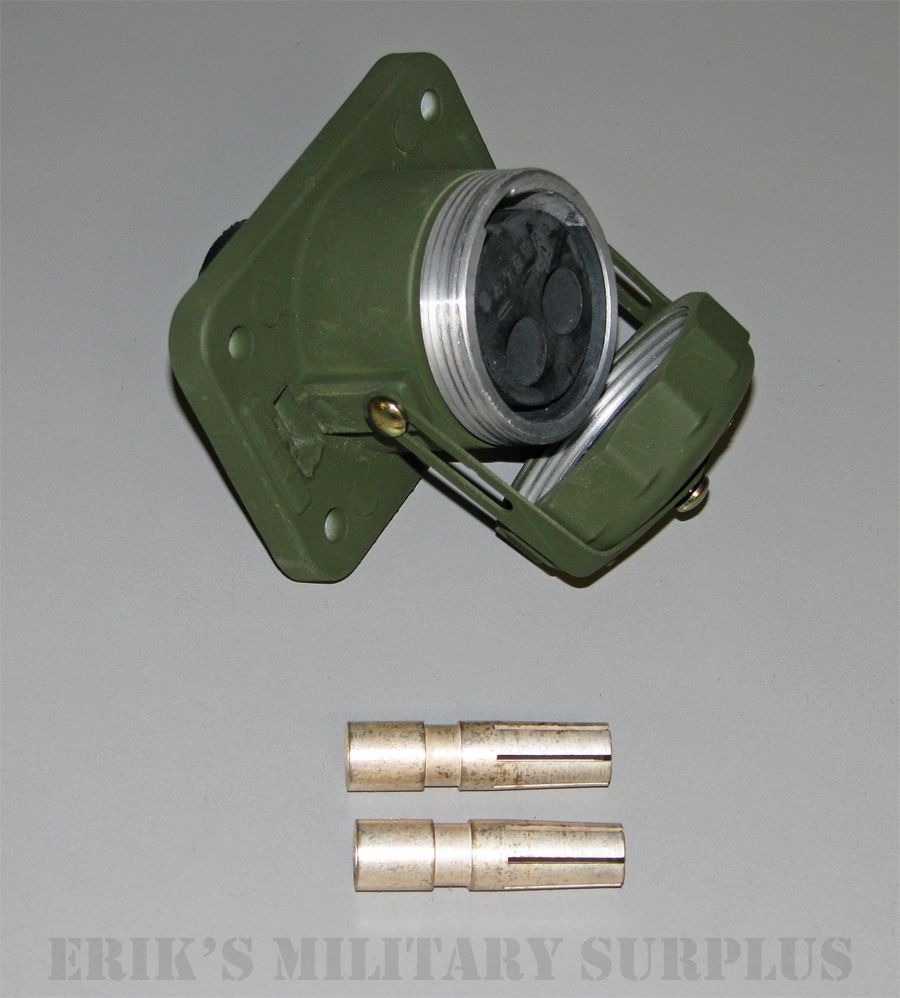

Slave receptacle with protective metal dust cap. Includes socket terminals. P/N MS75058-1, alternate numbers 10-40736-24, 7321299, 10896519. NSN 5935123085019, 5935002956403.
Made in USA. Meets military specifications.
2-socket style used on military vehicles, generator sets, trailers, etc. 168 amps continuous duty at 28 Volts DC, 305 amps max surge. Solder cup terminals. Connector housing and cap are cast aluminum. Contacts sized for 0 awg wire. Easy to assemble, no special tools needed, solder cups on connector sockets.
1.3 lbs
