PTO Kit For All M939 Series, (Allison MT654CR), 221XEAJP-W3XD
, 221XEAJP-W3XD "Pin It")
Product Description
Cable shift, single speed, PTO for all M939/A1/A2 series trucks. Replaces Chelsea 221 (221XEAJP-W3XD), Dana Spicer A22LL-C3-G, 308594-1, and Military 11669313.

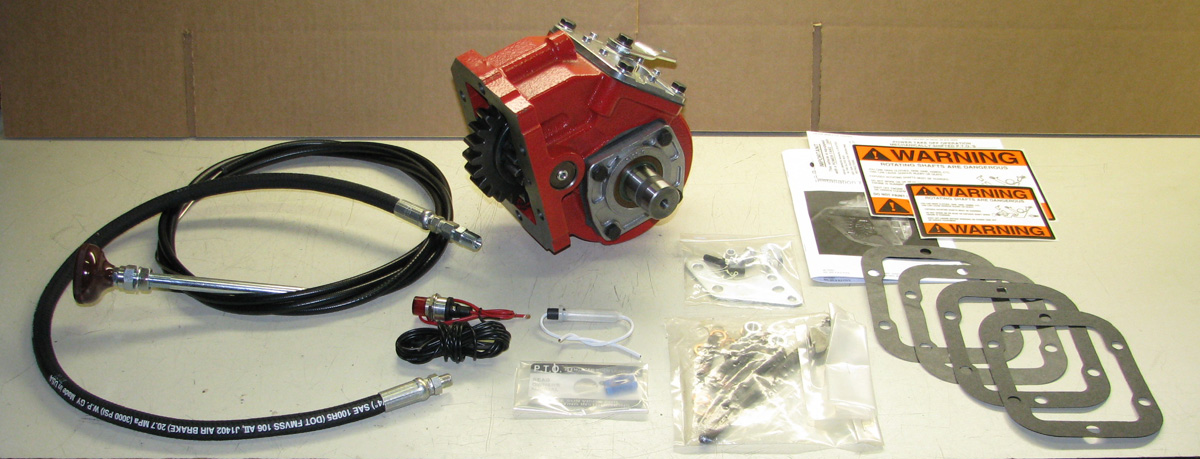

Kit includes installation instructions, mounting hardware, indicator light (w/ 12 volt bulb, use included #1829 for 24 volt applications), shift cable, gaskets, oil line hose, and safety instruction decals. This is an aftermarket kit, not an original military kit.
PTO made in Italy, assembled and tested in USA.
6 hole mount
Internal ratio: 0.514:1 (output shaft is 137% engine speed).
This PTO is configured with the higher gear ratio.
Pressure lubricated.
Intermittent maximum torque: 250 lb-ft
HP at 1000 RPM (PTO shaft speed): 47
Output shaft: 1-1/4 inch keyed
PTO is not for continuous duty applications when operated at maximum rated HP.
32 lb
Kit includes installation instructions, mounting hardware, indicator light (w/ 12 volt bulb, use included #1829 for 24 volt applications), shift cable, gaskets, oil line hose, and safety instruction decals. This is an aftermarket kit, not an original military kit.
PTO made in Italy, assembled and tested in USA.
6 hole mount
Internal ratio: 0.514:1 (output shaft is 137% engine speed).
This PTO is configured with the higher gear ratio.
Pressure lubricated.
Intermittent maximum torque: 250 lb-ft
HP at 1000 RPM (PTO shaft speed): 47
Output shaft: 1-1/4 inch keyed
PTO is not for continuous duty applications when operated at maximum rated HP.
32 lb
